Posted: 10/3/2023 12:54:31 AM EDT
[Last Edit: Namsag][Edited]
|
Update: 07/26 I made some changes to improve the adapter. Finer layers, better finish texture, and filled in the void on the receiver side to strengthen. The main body is now thicker, stiffer, and more robust. I left the original adapter pics on here for comparison.    This adapter was never for sale by anyone. It didn't have a part number or picture in the manual that came with the V3 Tac 13. I had my Tac 13 adapter professionally scanned and had some printed using Nylon 12. A good durable nylon. The fit is excellent, the texture is not far from the original and matched the Magpul 870 SGA stock quite well. The test gun stock. I added a 10-24 set screw to the bottom tab to adjust out the small amount of play (in the original as well) and to hold the SGA stock higher in position. I've run 900 rounds thru the V3 with this adapter installed for testing. Almost all trap rounds at 1 1/8 oz loads, 1200 FPS. This adapter is locked in place quite well and has no side or top loading to do its job. Check out the part pics and installed pics using the Magpul SGA 870 stock. Paintable as well so pick your pleasure.     |
|
This V3 is set up with a Magpul SGA stock, my nylon 12 printed stock adapter, a 21" smooth bore Hi Viz barrel with chokes. As it comes from Remington. This barrel is new, un fired, lots of oil. I wanted to show what it comes with. The Hi Viz front sight, a white lined V rear sight machined into the rib, first post, chokes, and the same non venting gas plugs found on the V3 Tac 13. This gun will end up being shortened. I don't want to cut this barrel as they are really hard to find, so I will use a 28" camo barrel I have, remove the camo of course. Or maybe not!!! Overall shot of the V3 Field Sport as it is today.  The gas plugs.  Front and rear sights
|
|
This part actually was for sale, but no one in the US had one. I found a dealer in Canada who had some but they wouldn’t sell or ship it to me - luckily I have friends in Canada. My TAC-13 came with an adapter that had a mil-spec AR receiver extension screwed into it and a pistol brace attached. I wanted to put a birdshead grip on it so I needed this adapter. This is the place where my buddy got it for me: https://store.gravelagency.com/gaen/f417439-v3-stock-shim-adapter.html The Remington part number is F417439, it looks like they still have 39 of these in stock. |
Do you see me, Toecutter?
|
Yes, the Gravel Agency. I actually called them and because of agreements with Remington, they wouldn't sell to the states. If you had a friend in Canada, thats your option. and yes, there is now a part number. I spoke with them maybe two years ago. But now, Remington arms is no longer. Maybe that agreement is no longer valid. I have no clue if Rem Arms is going to produce the Tac 13 or that adapter. Time will tell. |
|
There was always a part number for that adapter, that’s how I was able to search for it and locate one. I called JD at AIP Tactical and he looked up the part number for me, this was back in 2022. Midwest Gun Works has also had this part number listed on their website for a long time, they were the first place I called. The guy said they hadn’t received any new Remington parts since they filed bankruptcy in 2020 and didn’t know when they’d be getting more. I have no idea how that shop in Canada ended up with so many of these adapters. |
Do you see me, Toecutter?
|
I first got in touch with the Gravel Agency somewhere in 2020. I was chasing down the 18.5 Extra Barrel for the Remington V3, the Tac 13 barrel clamp and gas plugs. They had the parts but as we know, they won't ship to America. Don't think the parts are restricted by the US, don't know why they would be because of US manufacture, so I think just a matter of making the connections. I might just drop them (The Gravel Agency) a line to see if the aggreement with Remington is still valid, since Remington Arms is no longer in business. Now Rem Arms. If I get a response, I'll post on here. You still have the buddy up there? Update: Got in touch with the Gravel Agency. (Canada) They will not be selling to anyone in the states. Don't know if its Canadian law or just a policy of theirs. Kind of what I expected. |
Member
Joined:
May 2024
Posts:
1
EE: 0% (0)
LA, USA
Joined:
May 2024
Posts:
1
EE: 0% (0)
AZ, USA
Joined:
Jun 2024
Posts:
1
EE: 0% (0)
UT, USA
Joined:
Jun 2024
Posts:
2
EE: 0% (0)
UT, USA
Joined:
Sep 2022
Posts:
1
EE: 0% (0)
NV, USA
Joined:
Jul 2024
Posts:
1
EE: 0% (0)
DE, USA
| I’m new to this site. This is my first post. I would like to direct this to Namsag about his Remington V3 Tac 13 Stock shim. I have a Remington V3 Tactical with the 18-1/2 inch barrel. I was wondering if I could purchase one of those adapters from you so that I can install the Magpul SGA stock on ny firearm. |
|
Originally Posted By Refrigerator: I’m new to this site. This is my first post. I would like to direct this to Namsag about his Remington V3 Tac 13 Stock shim. I have a Remington V3 Tactical with the 18-1/2 inch barrel. I was wondering if I could purchase one of those adapters from you so that I can install the Magpul SGA stock on ny firearm. Got your message and replied. |
Joined:
Jul 2024
Posts:
2
EE: 0% (0)
DE, USA
Joined:
Jul 2024
Posts:
3
EE: 0% (0)
DE, USA
Joined:
Oct 2024
Posts:
1
EE: 0% (0)
CO, USA
Joined:
Feb 2025
Posts:
1
EE: 0% (0)
NJ, USA
Joined:
Mar 2025
Posts:
1
EE: 0% (0)
VA, USA
Joined:
Jun 2025
Posts:
1
EE: 0% (0)
OK, USA
Joined:
Sep 2025
Posts:
1
EE: 0% (0)
USA
Joined:
Oct 2025
Posts:
1
EE: 0% (0)
MD, USA
|
I made some changes to the adapter to improve the finish and strength. Got the first sample part this week and it is very good. I will be placing an order next week for the new version. Most likely February time frame for delivery. First three pics on this post is the new version. |
Joined:
Jan 2026
Posts:
1
EE: 0% (0)
CA, USA
|
Originally Posted By 1911Fannn: NAMSAG, how can I get my hands on one of the adapters ones they are available? Have a Rem V3 that I want to install a magpul hardware on it thats made for the Rem 870. Any help? The order has been placed for the new more robust version. (50) I was originally told 4-5 weeks to get them. Convinced them to get them next week. Message me and I'll get info off to you. |
Joined:
Jan 2026
Posts:
2
EE: 0% (0)
CA, USA
Joined:
Feb 2026
Posts:
1
EE: 0% (0)
AZ, USA
Joined:
Feb 2026
Posts:
2
EE: 0% (0)
AZ, USA
Joined:
Feb 2026
Posts:
1
EE: 0% (0)
FL, USA
Joined:
Mar 2026
Posts:
1
EE: 0% (0)
MS, USA
Joined:
Apr 2026
Posts:
1
EE: 0% (0)
TN, USA
Joined:
Jun 2026
Posts:
1
EE: 0% (0)
MS, USA
Joined:
Jun 2026
Posts:
2
EE: 0% (0)
MS, USA

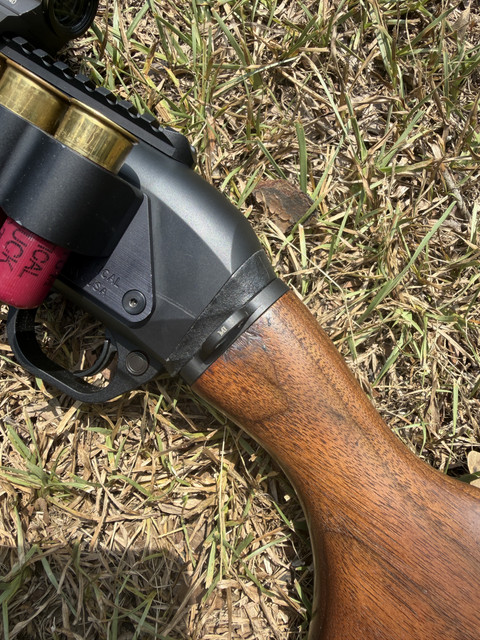

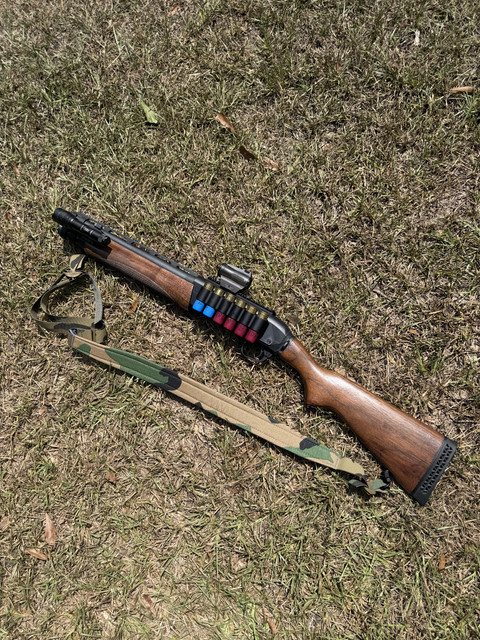

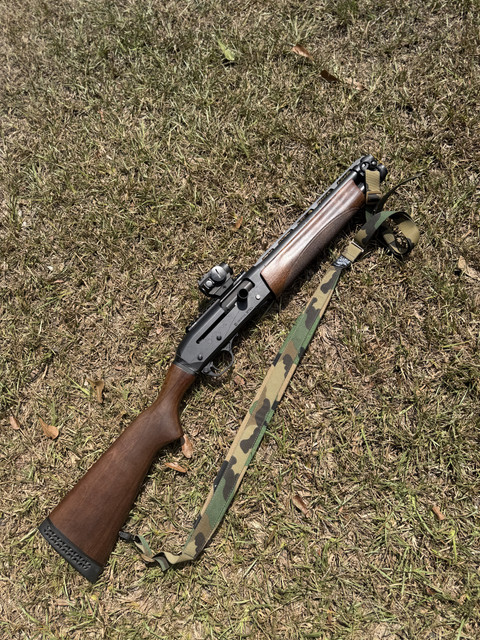

Picked up an adapter from Namsag after looking all over for an adapter and landing in this forum. I wanted to build a Wood Furniture Tac13 with No sourcing available for a V3 wood stock. The adapter fit well but did not fully cover the wood edge of the original 870 stock. I was worried about cracking along the edges under fire. Adding in a Sling Plate fixed the issue and tightened up the edges. I utilized the factory 870 stock bolt and simply took a 1" spade bit to allow the bolt to fit deeper into the stock allowing the correct amount of protrusion through the adapter and sling plate. Reached the correct protrusion of 0.328' and it went together perfectly.
|
