HKP-22335 MP5/AP5 Optic Rail Mount Picatinny - Which way do the bevels go?

TexasflyboynVA

Joined: Nov 2018

Posts: 80

EE: 100% (21)

VA, USA

Posted: 8/27/2026 9:01:13 AM EDT

I can't seem to get the HKP-22335 MP5/AP5 Optic Rail Mount Picatinny mounted on my MKE AP5.

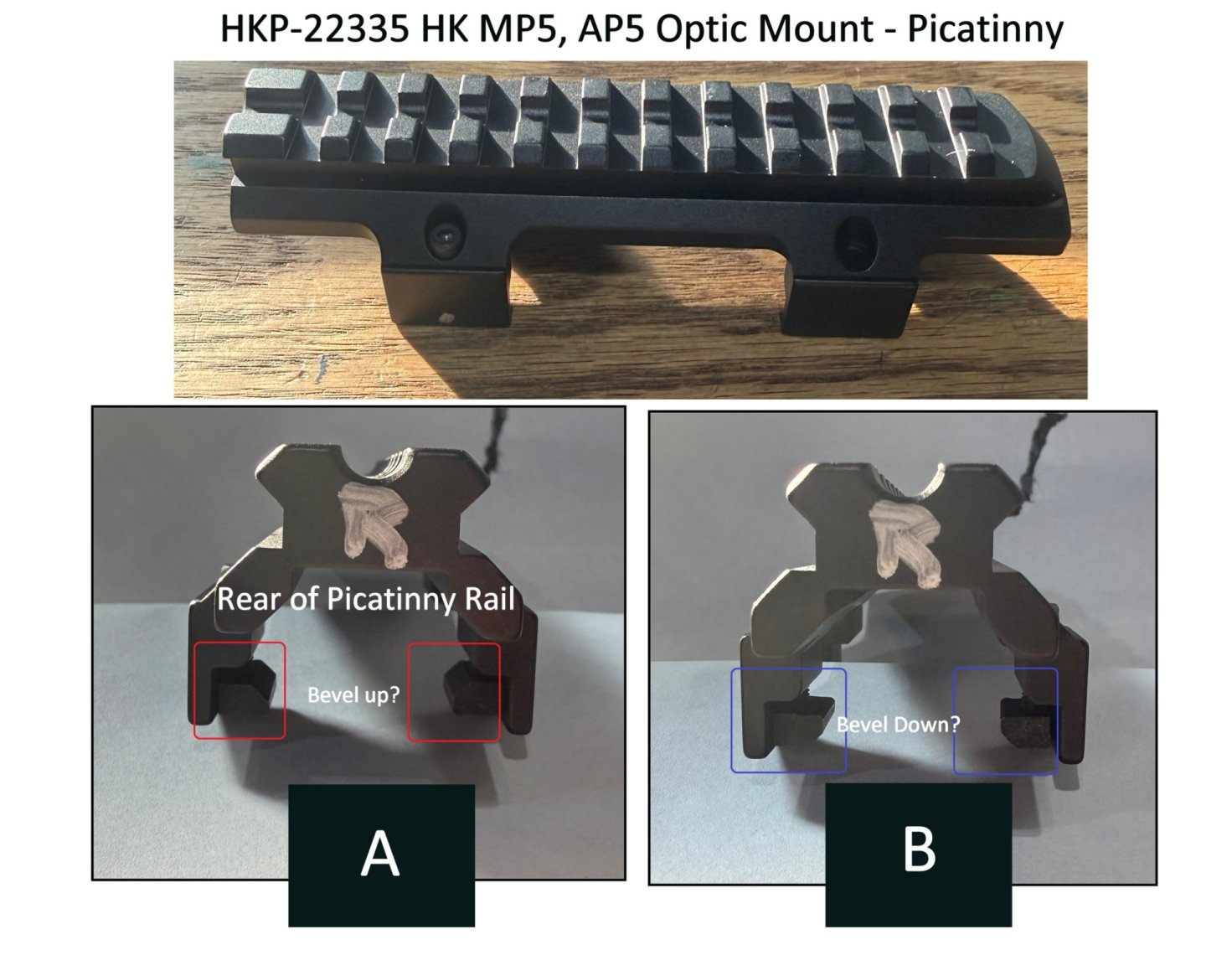

Which way do the bevels go? A? or B? Or is it another way? I can't seem to get the mount on using "A" or "B" orientation.

TIA for any advice or suggestions.

osprey21

Member

Joined: Jan 2001

Posts: 170336

EE: 100% (297)

FL, USA

Posted: 8/27/2026 11:39:28 AM EDT

[#1]

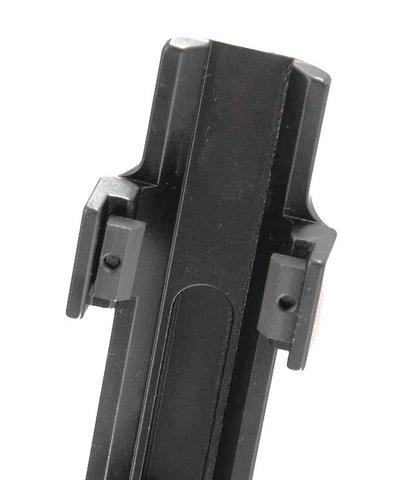

The bevel goes down.

Now with more political fatigue.

TexasflyboynVA

Joined: Nov 2018

Posts: 81

EE: 100% (21)

VA, USA

Posted: 8/28/2026 1:32:46 PM EDT

[#2]

Woohoo! Thanks!
