Posted: 4/13/2013 11:37:05 AM EST
[Last Edit: 3/17/2018 9:49:10 AM EST by Lancelot]
Let's see your guys M4 SOPMOD Clones, all are welcome here but this is mainly for the Block I and 1.5/PR clones.

Block I



Barrel:
14.5" M4 1/7 twist (M4 Profile or HB 'SOCOM' Profile)

Flash Hider:
Standard A2 or KAC NT4

Rail System:
KAC M4 RIS/RAS

Vertical grips
KAC

Rail panels:
KAC

Optics:
Aimpoint Comp M/M2 in Wilcox Mount
Trijicon ACOG TA01 NSN
Trijicon RX01

IR/Visible Lasers:
Insight PAQ-4
Insight AN/PEQ-2
Insight AN/PEQ-5 Visible Laser

Flashlight:
Surefire M951/M952

Rear sight:
MaTech

Buttstock:
Colt Fiberlite
Standard M4
SOPMOD

Block 1.5/Phase Replacement (PR)
Barrel:
14.5" M4 1/7 twist (M4 Profile or HB 'SOCOM' Profile)

Flash Hider:
Standard A2 or KAC NT4

Rail System:
KAC M4 RIS/RAS

Vertical grips:
Tango down battle grip in tan
KAC
Grip-Pod

Rail panels:
Tango Down
KAC

Optics:
Elcan Specter DR SU-230
EOTech SU-231-PEQ (EOTech 553)
EOTech SU-231A-PEQ (EOTech EXPS03)
ACOG SU-237 (TA01-ECOS)
EOTech/Aimpoint 3x magnifiers

IR Lasers:
Insight AN/PEQ-15/LA-5

Flashlight:
Insight M3 (SU-233/PVS)
Insight WMX200

Rear sight:
KAC 300m
KAC 600m
MaTech

Buttstock:
standard M4
SOPMOD

Block II (borrowed from M4A1 SOPMOD Block II Thread)
Attachment Attached File


Barrel:
14.5" M4 1/7 twist (M4 Profile or HB 'SOCOM' Profile)

Flash Hider:
Standard A2, KAC NT4, Surefire SF4P (good luck purchasing!)

Rail System:
DD RIS II in dark earth

Vertical grips
Tango down battle grip in tan
KAC
Grip-Pod

Rail panels:
Tango Down
KAC

Front sight:
KAC flip up in tan

Optics:
Elcan Specter DR SU-230
EOTech SU-231-PEQ (EOTech 553)
EOTech SU-231A-PEQ (EOTech EXPS-3)
ACOG SU-237 (TA01-ECOS)
EOTech/Aimpoint 3x magnifiers

IR Lasers:
Insight AN/PEQ-15/LA-5

Flashlight:
Insight M3 (SU-233/PVS)
Insight WMX200
Surefire Scout M600

Rear sight:
KAC 300m
KAC 600m
MaTech

Buttstock:
standard M4
SOPMOD

Now some reference pictures:

Here are mine!
(Top) M4 SOPMOD (Block 1)
(Middle) M4 SOPMOD (Phase Replacement)
(Bottom) M4 SOPMOD Block II
Attachment Attached File


Block I (M4 SOPMOD)

Attachment Attached File

Attachment Attached File

Attachment Attached File

Attachment Attached File

Attachment Attached File

Attachment Attached File

Attachment Attached File

Attachment Attached File

Attachment Attached File

Attachment Attached File

Attachment Attached File

Attachment Attached File

Attachment Attached File

Attachment Attached File


Phased Replacement (Block 1.5)

Attachment Attached File

Attachment Attached File

Attachment Attached File

Attachment Attached File

Attachment Attached File

Attachment Attached File

Attachment Attached File

Attachment Attached File

Attachment Attached File
Link Posted: 4/13/2013 11:50:03 AM EST
[Last Edit: 4/13/2013 11:55:29 AM EST by Tbox]
Damn, I started one too. Want to move the stuff from my first post to this one? Ill move my contribution to my post.

My start.
Link Posted: 4/13/2013 11:54:46 AM EST
Done, thanks for the heads up. I'll keep trying to get some info added/changed.
Link Posted: 4/13/2013 11:58:23 AM EST
Sweet rifles!
Link Posted: 4/13/2013 12:05:51 PM EST


Link Posted: 4/13/2013 12:12:13 PM EST

Link Posted: 4/13/2013 12:30:46 PM EST
Here's what I have.

Link Posted: 4/13/2013 1:25:14 PM EST
Link Posted: 4/13/2013 1:27:50 PM EST
Please feel free to send me info to add or subtract from the first post. I tried to clear it up fairly well but there are always those oddballs that seem to slip through
Link Posted: 4/13/2013 1:31:15 PM EST
[Last Edit: 4/13/2013 1:32:49 PM EST by gunnut003]
Originally Posted By Lancelot:
We'll discuss this and see if we'll let this run. We now have an M4 thread, an issued M4 thread, an AFSOC M4 thread, and the Block II thread. How many M4 threads do we need?



Stupid clone threads.





Until we are broke?

i will post pictures when i get back home in WA from TX....
Link Posted: 4/13/2013 1:32:12 PM EST
[Last Edit: 4/13/2013 1:33:26 PM EST by Tbox]
Originally Posted By gunnut003:
Originally Posted By Lancelot:
We'll discuss this and see if we'll let this run. We now have an M4 thread, an issued M4 thread, an AFSOC M4 thread, and the Block II thread. How many M4 threads do we need?



Stupid clone threads.




I think its good to see the dedicated threads. I have asked a couple of questions in the block II thread about block I stuff and get no response. Its good to have information flowing on the individual rifles where the info wont get all jumbled up

Link Posted: 4/13/2013 3:43:14 PM EST
People who have any m4 clone can post with out getting hated on.
Link Posted: 4/13/2013 4:07:22 PM EST
Originally Posted By Lancelot:
We'll discuss this and see if we'll let this run. We now have an M4 thread, an issued M4 thread, an AFSOC M4 thread, and the Block II thread. How many M4 threads do we need?



Stupid clone threads.


http://farm9.staticflickr.com/8542/8644238454_263aea98d1_b.jpg

http://farm9.staticflickr.com/8263/8644238960_e15106f886_b.jpg

http://farm9.staticflickr.com/8084/8355572780_120a9a6b70_b.jpg


Idon't know why we don't convert our existing Block II thread to all SOPMOD/SOCOM thread, (ie block 1, PR, 2).
Link Posted: 4/13/2013 4:15:23 PM EST
I agree,  I was just thinking about that.
Link Posted: 4/13/2013 4:25:59 PM EST
Combine it with the ARFSOC thread too.
It would basically be an all inclusive SOPMOD/SF/MIL picture thread with clones of only those guns.
One requirement could be that the rail system, accessories, and optics must have an NSN associated with them to qualify for the picture thread.
Link Posted: 4/13/2013 5:22:00 PM EST
Originally Posted By Sierra_Zulu:
I agree,  I was just thinking about that.


x87

I don't think there's any need or reason to go around combining all of these threads and starting new ones. Just allow Block I clones into the Block II thread,
Link Posted: 4/13/2013 6:36:30 PM EST
Originally Posted By StevieJ309:
Originally Posted By Sierra_Zulu:
I agree,  I was just thinking about that.


x87

I don't think there's any need or reason to go around combining all of these threads and starting new ones. Just allow Block I clones into the Block II thread,


This, AFSOC does their own thing compared to other units, though they have been seen in the Block II / CQBR thread.
Link Posted: 4/14/2013 1:00:29 AM EST
Here's my contribution:







Still need to install a SOCOM barrel, but I'm waiting to get the NT4 mount perm'd with spacer so I don't have to worry about making another SBR.
Link Posted: 4/14/2013 1:16:04 AM EST
I noticed in the OP that the SOPMOD stock was not listed as a block I component (only CAR and M4 stock)  Is this just an oversight, or does placing a SOPMOD stock on it make it a Block 1.5?
Link Posted: 4/14/2013 5:10:31 AM EST
[Last Edit: 4/14/2013 5:11:16 AM EST by TREETOP]
Link Posted: 4/14/2013 8:10:33 AM EST
Can I protest ever so briefly and request that "M-4" be changed to "M4" without the hyphen?  It's going to bug me from now until the end of time...

Also, the RO921HB profile barrel was introduced around 2000 - most post-2000 and most War on Terror M4A1s would all have the "SOCOM" profile barrel.

~Augee
Link Posted: 4/14/2013 8:43:28 AM EST
Changed to M4 just for you

The SOPMOD not being listed on the Block I was a simple oversight on my part, I apologize for that! I also added a little more barrel info per Augee's guidance. Now we just need lots more pictures!
Link Posted: 4/14/2013 9:22:33 AM EST
[Last Edit: 4/14/2013 9:30:57 AM EST by TurbineGuy]
Patiently waiting for the Army dedicated thread, the USMC dedicated thread, the USAF dedicated thread, the Navy dedicated thread,the SWAT dedicated thread, etc.


We wouldn't have so many of these threads if the same people didn't post the same pics of the same rifles over and over and over again. Every time someone takes new pics, every thread has to be updated and bumped, and its hardly ever for something new. Its usually the same people jerking each other off over the same things. Constantly.


And if you wants rules for a thread, NO AIRSOFT PARTS ON YOUR RIFLES!!
Link Posted: 4/14/2013 4:53:47 PM EST
Ok, here is one of the same old people posting a bunch of old pics:






There is a M4 upper in here somewhere:

My first personally owned AR:


FDE M4:

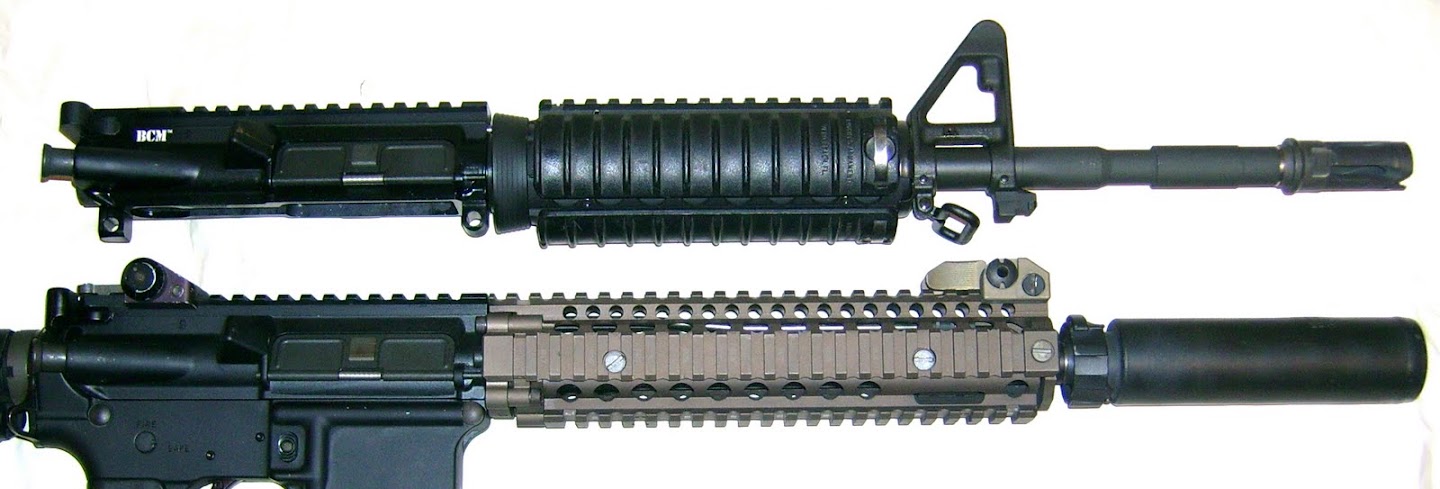

14.5 M4 next to a 901:
Link Posted: 4/14/2013 5:14:44 PM EST
Wish I could afford a tax stamp to slap on a M4 upper 14.5 with A2 flash hider

Mine wouldnt count since its  a 14.5 +phantom and I use a larue mount for my aimpoint

Other than that I have  everything else
Link Posted: 4/14/2013 6:44:51 PM EST
[Last Edit: 4/14/2013 6:49:46 PM EST by samuse]



What was the point in posting all those pics of not one fuckin' rifle that belongs here?

SOPMOD Block I/1.5.

The guys in Block II thread can dikks, so we can too!

Block I .



Just got this upper back from ADCO.

This rifle is 100% Colt, KAC and Trijicon.  Well the flash hider came from BCM.



Link Posted: 4/14/2013 9:30:15 PM EST
Link Posted: 4/15/2013 6:34:45 PM EST


Even the correct barrel



Im starting to fall in love with the simplicity of this rifle....almost over my block ll

Link Posted: 4/15/2013 8:32:25 PM EST
Originally Posted By hatexoc:
<a href="http://s1263.photobucket.com/user/hatexoc/media/Mobile%20Uploads/IMG_0274_zpsb8632e99.jpg.html" target="_blank">http://i1263.photobucket.com/albums/ii640/hatexoc/Mobile%20Uploads/IMG_0274_zpsb8632e99.jpg</a>

Even the correct barrel

<a href="http://s1263.photobucket.com/user/hatexoc/media/Mobile%20Uploads/IMG_6505_zps655fe889.jpg.html" target="_blank">http://i1263.photobucket.com/albums/ii640/hatexoc/Mobile%20Uploads/IMG_6505_zps655fe889.jpg</a>

Im starting to fall in love with the simplicity of this rifle....almost over my block ll




I feel the same way.  The Block II just became a clunky, porky pig of a carbine and is great in a semi-precision role but for what a carbine is for...  IMO the Block I shines.





Link Posted: 4/15/2013 9:28:33 PM EST
 I need to hurry up and get an optic and RAS......................Damn nice rifles guys, I love the M4!!
Link Posted: 4/15/2013 10:14:21 PM EST


Took my m3 off a different rifle to show some real ol school
Link Posted: 4/15/2013 10:30:52 PM EST
Link Posted: 4/15/2013 10:52:58 PM EST
Originally Posted By Lancelot:
I could do that. I just need a QRP mount. I even have the KAC sight.


I don't know why but your rifle looks so different than mine, and its the exact same thing. Maybe it's cause yours is pretty and new lol
Link Posted: 4/16/2013 6:51:19 AM EST
Link Posted: 4/16/2013 11:13:52 AM EST
When did the transition from the CAR stock to the SOPMOD stock take place?
Link Posted: 4/17/2013 3:24:50 AM EST
Originally Posted By The_Texan_Ninja:
When did the transition from the CAR stock to the SOPMOD stock take place?


There was not any "transition" per se that I am aware of.  It is just an option that is available.

The production transition from the CAR-style stock to the newer M4-style stock occurred around 2002.

I believe that the "enhanced M4 buttstock" was introduced somewhere around 2003-ish, though I'm not 100% certain on the date.  They were designed at Crane based on the old Colt ACR stock before being contracted out.

~Augee
Link Posted: 4/17/2013 6:36:21 AM EST
Originally Posted By Augee:
Originally Posted By The_Texan_Ninja:
When did the transition from the CAR stock to the SOPMOD stock take place?


There was not any "transition" per se that I am aware of.  It is just an option that is available.

The production transition from the CAR-style stock to the newer M4-style stock occurred around 2002.

I believe that the "enhanced M4 buttstock" was introduced somewhere around 2003-ish, though I'm not 100% certain on the date.  They were designed at Crane based on the old Colt ACR stock before being contracted out.

~Augee


So it was never officially adopted for the Block I program?
Link Posted: 4/17/2013 8:55:49 AM EST
Originally Posted By The_Texan_Ninja:
So it was never officially adopted for the Block I program?


It's "official," and was designed by NSWC-Crane, one of the few "recce" pictures has a prototype version, but I don't think that there was a "transition" between the two where it was ever said "this stock will be replaced by this stock" the way you would say "the AN/PEQ-2 and AN/PEQ-5 components will now be replaced by the LA-5/PEQ component."  It's just an option.

The conventional side is about the same - SOPMOD stocks are available and issued and can be used if desired, but there's not a "transition" per se.

~Augee
Link Posted: 4/17/2013 11:41:46 AM EST
What Block if any does the 12" rifle version of the KAC RAS fall into?
Link Posted: 4/17/2013 12:05:18 PM EST
The 12" KAC RAS Free Float was for the Mk12 Mod1 Rifle and the USMC's SAM-R rifle, neither of which are part of the M4 SOPMOD Program.
Link Posted: 4/17/2013 12:06:24 PM EST
What sling would have been issued for the M4 style stock? Sopmod stock?

I love my Mamba but it doesn't ride well on the Sopmod.....
Link Posted: 4/17/2013 3:48:59 PM EST
[Last Edit: 4/17/2013 3:50:20 PM EST by Stottman]
Originally Posted By SigfanUSAF:
What sling would have been issued for the M4 style stock? Sopmod stock?

I love my Mamba but it doesn't ride well on the Sopmod.....


There was an official sling as part of the block 1, complete with sling attachment for the KAC RAS, but it was horrible. Most were home made or from standard USGI M4 slings.

Mine-


Link Posted: 4/18/2013 7:12:08 AM EST
Stottman, between your carbines (espeically the two in the middle) and this thread, I'm missing my old block 1 style carbine now. It might be time to build another... my fiance might kill me

My old stick, which has since evolved...
http://i961.photobucket.com/albums/ae98/N_K_1984/DSC00194.jpg
Link Posted: 4/18/2013 4:36:25 PM EST
Ok, I'll contribute
PR

Block II
Link Posted: 4/18/2013 5:46:36 PM EST
Geetars & gunz.




Link Posted: 4/18/2013 7:41:02 PM EST


Need pics of the amp too man!!
Link Posted: 4/18/2013 7:45:59 PM EST
Originally Posted By Tmender03:
Ok, I'll contribute
PR
<a href="http://s284.photobucket.com/user/joshauclarkson/media/IMG_20101226_085828-1.jpg.html" target="_blank">http://i284.photobucket.com/albums/ll35/joshauclarkson/IMG_20101226_085828-1.jpg</a>
Block II
<a href="http://s284.photobucket.com/user/joshauclarkson/media/IMG_20130418_170206_zps70524466.jpg.html" target="_blank">http://i284.photobucket.com/albums/ll35/joshauclarkson/IMG_20130418_170206_zps70524466.jpg</a>


TWO ECLANS!! NICE!! I wish I could find a guy out here in central Florida who's got one so I can at least check it out before I shell out $$$$$. I'm running a TA01-NSN w/ Docter (I know its not part of the SOPMOD program, but I like it!!) and I just can't on a whim buy it without seeing it first. I'm in the process of building a block I to match my Block II & Mk18, I'll post pics soon. NT4 still waiting on ATF
Link Posted: 4/18/2013 8:16:21 PM EST
Originally Posted By schaz42:
Originally Posted By Tmender03:
Ok, I'll contribute
PR
<a href="http://s284.photobucket.com/user/joshauclarkson/media/IMG_20101226_085828-1.jpg.html" target="_blank">http://i284.photobucket.com/albums/ll35/joshauclarkson/IMG_20101226_085828-1.jpg</a>
Block II
<a href="http://s284.photobucket.com/user/joshauclarkson/media/IMG_20130418_170206_zps70524466.jpg.html" target="_blank">http://i284.photobucket.com/albums/ll35/joshauclarkson/IMG_20130418_170206_zps70524466.jpg</a>


TWO ECLANS!! NICE!! I wish I could find a guy out here in central Florida who's got one so I can at least check it out before I shell out $$$$$. I'm running a TA01-NSN w/ Docter (I know its not part of the SOPMOD program, but I like it!!) and I just can't on a whim buy it without seeing it first. I'm in the process of building a block I to match my Block II & Mk18, I'll post pics soon. NT4 still waiting on ATF


Not two Elcan's, but the same rifle as a phased replacement, and currently Block II.
Link Posted: 4/18/2013 9:24:35 PM EST
New arrivals...

amidoinitrite?

Link Posted: 4/19/2013 12:05:02 AM EST
Originally Posted By schaz42:
Originally Posted By Tmender03:
Ok, I'll contribute
PR
<a href="http://s284.photobucket.com/user/joshauclarkson/media/IMG_20101226_085828-1.jpg.html" target="_blank">http://i284.photobucket.com/albums/ll35/joshauclarkson/IMG_20101226_085828-1.jpg</a>
Block II
<a href="http://s284.photobucket.com/user/joshauclarkson/media/IMG_20130418_170206_zps70524466.jpg.html" target="_blank">http://i284.photobucket.com/albums/ll35/joshauclarkson/IMG_20130418_170206_zps70524466.jpg</a>


TWO ECLANS!! NICE!! I wish I could find a guy out here in central Florida who's got one so I can at least check it out before I shell out $$$$$. I'm running a TA01-NSN w/ Docter (I know its not part of the SOPMOD program, but I like it!!) and I just can't on a whim buy it without seeing it first. I'm in the process of building a block I to match my Block II & Mk18, I'll post pics soon. NT4 still waiting on ATF


Actually, I believe it IS part of the SOPMOD program.  At least, in the beginning, they were using the TA01NSN with a J-point MRD on top, which, as I understand it, was later changed to the Docter.  Someone correct me if I'm wrong.
Link Posted: 4/19/2013 9:16:58 AM EST
Originally Posted By FAB-10_Guy:
Originally Posted By schaz42:
Originally Posted By Tmender03:
Ok, I'll contribute
PR
<a href="http://s284.photobucket.com/user/joshauclarkson/media/IMG_20101226_085828-1.jpg.html" target="_blank">http://i284.photobucket.com/albums/ll35/joshauclarkson/IMG_20101226_085828-1.jpg</a>
Block II
<a href="http://s284.photobucket.com/user/joshauclarkson/media/IMG_20130418_170206_zps70524466.jpg.html" target="_blank">http://i284.photobucket.com/albums/ll35/joshauclarkson/IMG_20130418_170206_zps70524466.jpg</a>


TWO ECLANS!! NICE!! I wish I could find a guy out here in central Florida who's got one so I can at least check it out before I shell out $$$$$. I'm running a TA01-NSN w/ Docter (I know its not part of the SOPMOD program, but I like it!!) and I just can't on a whim buy it without seeing it first. I'm in the process of building a block I to match my Block II & Mk18, I'll post pics soon. NT4 still waiting on ATF


Actually, I believe it IS part of the SOPMOD program.  At least, in the beginning, they were using the TA01NSN with a J-point MRD on top, which, as I understand it, was later changed to the Docter.  Someone correct me if I'm wrong.


The MRD was a PIP for the 4x DOS.  Most commonly it was the JPoint with the JP winged mount, but some Docters were used as well.

There was not an "official" MRD until the MRDS.

~Augee
Arrow Left Previous Page
Page / 197
Top Top
