Posted: 1/10/2025 11:20:02 PM EDT
|

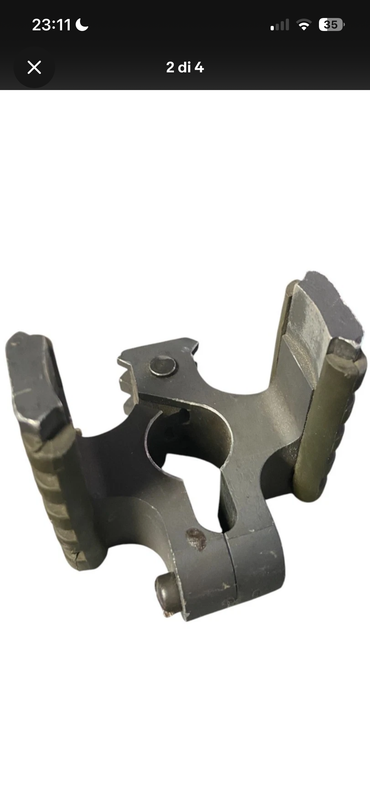

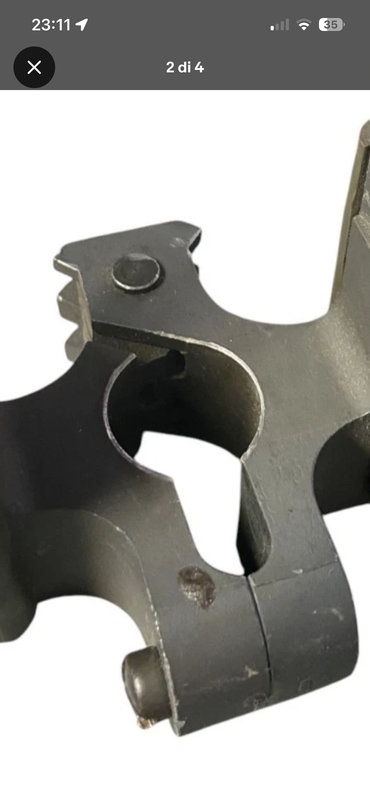

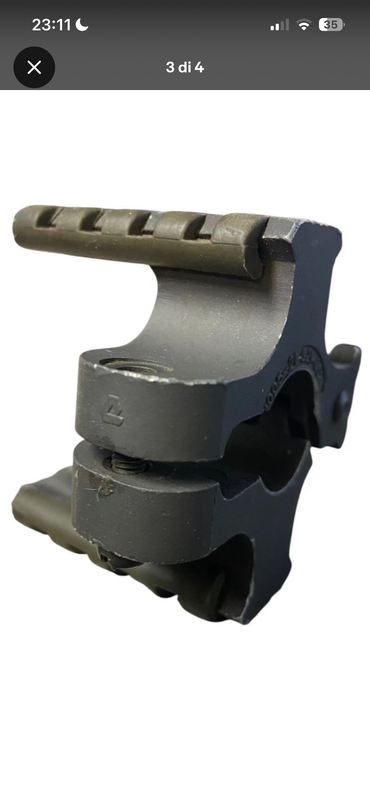

I think I got yelled at in Retro the last time I posted a C7 there. So it it is so I can get yelled at and told its not an A2, lol. I wanted a Tri-Rail mount for my C7A1.5 sorta build but A) they're hard to find and B) they're expensive. So I found an .stl file and 3 d printed one. I used ASA which has a good heat resistance and lined the part that touches the barrel with heat reflective tape. I shimmed it with a thick rubber tape behind the heat shield tape since I used an A1 barrel on my build rather than an A2 profile. It seems quite solid, and it should hold up to the heat. I've used ASA and heat shield tape on N23 handguards with good success so far. It should be solid enough to mount a light on at the very least and has the right look. Total cost of the material, tape and an M4 screw and bolt was probably well under $5. Attached File Attached File Attached File Attached File |
|
Originally Posted By Kombatrok: Neat solution. I'm sure it could be printed in metal as well. You have it mounted backwards though... Huh, I was basing it on the pics HERE, but looking around I see you're right, most seem to have the rails the other way. Now I gotta flip it around and try it that way! |
|
Okay, switched it around. That does look better! Attached File Attached File Attached File Attached File |
|
Yeah, I’ll make us a few. I can either mold up originals or a 3D printed copy and crank some out. They’d require a little bit of post casting clean up, but a minimal amount of some hand filing at most. A 3D one might be a better pattern if it could be made a few thou to accommodate the contraction of the aluminum. But not entirely necessary. |
|
G&G makes a reproduction Diemaco Tri Rail for airsoft use, it may be just 6061 aluminum vs 7075 but better than nylon or plastic: https://101techusa.com/tri-rail-mount-black.html |
1995 M1025A2 5SFG GMV 2A11C
1995 M1025A2 1SFG GMV 5
1984 Chenowth M1040 Fast Attack Vehicle 0014 "Horney Toad"
1995 M1025A2 1SFG GMV 5
1984 Chenowth M1040 Fast Attack Vehicle 0014 "Horney Toad"
|
Originally Posted By tstetz: Huh, I was basing it on the pics HERE, but looking around I see you're right, most seem to have the rails the other way. Now I gotta flip it around and try it that way! Originally Posted By tstetz: Originally Posted By Kombatrok: Neat solution. I'm sure it could be printed in metal as well. You have it mounted backwards though... Huh, I was basing it on the pics HERE, but looking around I see you're right, most seem to have the rails the other way. Now I gotta flip it around and try it that way! You’ll see them mounted backwards but IIRC it was because the M203 sight interfered? It’s been a long time since I had an M203 mounted on a C7 (2004) so my memory is a little fuzzy. It definitely would interfere with the M203 sight on a C8, so they came out with a modified Triad for the C8A3. Nella bayonet? Nice score if it is. |
|
Originally Posted By Leg: You’ll see them mounted backwards but IIRC it was because the M203 sight interfered? It’s been a long time since I had an M203 mounted on a C7 (2004) so my memory is a little fuzzy. It definitely would interfere with the M203 sight on a C8, so they came out with a modified Triad for the C8A3. Nella bayonet? Nice score if it is. Yep, it is a Nella. |
|
Originally Posted By stoner63a: G&G makes a reproduction Diemaco Tri Rail for airsoft use, it may be just 6061 aluminum vs 7075 but better than nylon or plastic: https://101techusa.com/tri-rail-mount-black.html Those are a pretty decent copy. They do take a bit of filing to fit barrel diameter. |
|
Originally Posted By Lancelot: Any updates on this project? I'm also interested, I'm currently reconfiguring a couple of rifles for C7 and C7A2 clones. The C7A1 is a M16A4 equivalent but the C7 and C7A2 are lighter and more simple than the A4. We need a C7/C8 info thread to be tacked, @Lancelot are you on the mod list? OG C7 c1984 is absolutely a A2, I believe the model designation in the US is 715. Its exactly the same as a 701 except for the "field sights"(A1) and Auto rather than the burst, it was available with the CS stock(A1 length in A2 style/materials):  A1/A2(A2 still standard issue to Canadian Military): 1991 Canadian forces training vid for C7:  Canadian Forces - C7 Rifle Training Series (1991) |
Taxation without representation
|
My C7 copy w/Hi Power(FN not Inglis): Attached File |
Taxation without representation
|
Originally Posted By mech4matsnova: I'm also interested, I'm currently reconfiguring a couple of rifles for C7 and C7A2 clones. The C7A1 is a M16A4 equivalent but the C7 and C7A2 are lighter and more simple than the A4. We need a C7/C8 info thread to be tacked, @Lancelot are you on the mod list? OG C7 c1984 is absolutely a A2, I believe the model designation in the US is 715. Its exactly the same as a 701 except for the "field sights"(A1) and Auto rather than the burst, it was available with the CS stock(A1 length in A2 style/materials): https://i.namu.wiki/i/9I7tFk146_FuZK24KquLz8SReRvt3oSUqSJO2iWYxBGOyDmLShQ49JOuPX6_I8nhw5Fhm3s642s3EupS3y3wrw.webp A1/A2(A2 still standard issue to Canadian Military): https://qph.cf2.quoracdn.net/main-qimg-76771685804b4933157d3409ae984b6f-lq 1991 Canadian forces training vid for C7:  https://www.youtube.com/watch?v=EkgMtlCuoWY@Aimless could get this tacked.
|
"All welchers should be removed from the EE".-Aimless
|
Pull my extensive C7/C8 FOW thread from the archive and tack it. FFS. Found in this thread… Thread with link to archived C7/C8 reference info… |
Regulars, by God!
|
Originally Posted By Lancelot: These are in stock but it says dealers only. I can get one from Canada+ship+tariff, rather get one from a US source if possible ETA: just ordered 2 from Evike, will update when they show up |
Taxation without representation
|
Originally Posted By Lancelot: Link? |
|
Originally Posted By KitBuilder: https://www.evike.com/products/126553/ |
|
C7A2 Attached File Attached File Attached File Mid C7A1 Attached File Attached File |
Taxation without representation
Joined:
Jul 2022
Posts:
160
EE: 100% (192)
USA
|
Originally Posted By KitBuilder: https://www.evike.com/products/126553/ Back in stock |
