I just received my completed 1986 Tula build and there is a lot of play in the gas tube/upper hand guard, its just kind of annoying, doesn't affect function but none the less bothers me. I did some preliminary research and it seems like a good few others have had the same issue but no one that I could find posted a solid solution, how do you eliminate this extra play in the gas tube? Any input would be really appreciated.
nictra
Member
Offline
Posts: 5796
Feedback: 100% (50)
Link To This Post
Posted: 7/25/2012 9:23:50 PM
lots of krinks suffer this. Go to the kitchen and pull out the aluminum foil. Make shims. Mine did it until I replaced the lower HG retainer (I broke it ) and when the smith put the FSB back on it it didn't rattle anymore.
AEnemaBay
2111 - USMC
Military
Online
Posts: 2917
Feedback: 100% (39)
Link To This Post
Posted: 7/25/2012 9:55:39 PM
The long term fix is to press the FSB closer to the receiver until the play is gone. If that's not an option some people have taken the tension springs from AK-74 gas tubes and modified them to work with the Krink tube. Never tried it myself, however.
"Nothing says 'come to my tree stand for a good cornholing' more than a Browning Buckmark sticker on your oversized truck." - dport

"Tactical" is a mindset, not an equipment list.
muzzleloader
Offline
Posts: 364
Feedback: 100% (28)
Link To This Post
Posted: 7/26/2012 10:08:01 AM
I used an ak74 gas tube spring. Worked great!
AEnemaBay
2111 - USMC
Military
Online
Posts: 2918
Feedback: 100% (39)
Link To This Post
Posted: 7/26/2012 10:39:30 AM
Originally Posted By muzzleloader:
I used an ak74 gas tube spring. Worked great!


Could you take a pic of you modified it? I've seen others say that's what they used but I haven't seen it yet.
"Nothing says 'come to my tree stand for a good cornholing' more than a Browning Buckmark sticker on your oversized truck." - dport

"Tactical" is a mindset, not an equipment list.
jake-cutter
Member
Online
Posts: 2132
Feedback: 100% (27)
Link To This Post
Posted: 7/26/2012 9:18:45 PM
Who did the build?
muzzleloader
Offline
Posts: 365
Feedback: 100% (28)
Link To This Post
Posted: 7/27/2012 12:41:39 PM
I'll take a pic on Monday...im in Vegas baby! you do have to make a 90 degree bend on the spring...still pretty simple and quick.
nictra
Member
Offline
Posts: 5801
Feedback: 100% (50)
Link To This Post
Posted: 7/27/2012 2:32:22 PM

Originally Posted By muzzleloader:
I used an ak74 gas tube spring. Worked great!

even better. When I 1st got mine the tin foil shims was the way to go. Glad to see someone worked out a better plan.
muzzleloader
Offline
Posts: 366
Feedback: 100% (28)
Link To This Post
Posted: 7/31/2012 10:55:15 PM

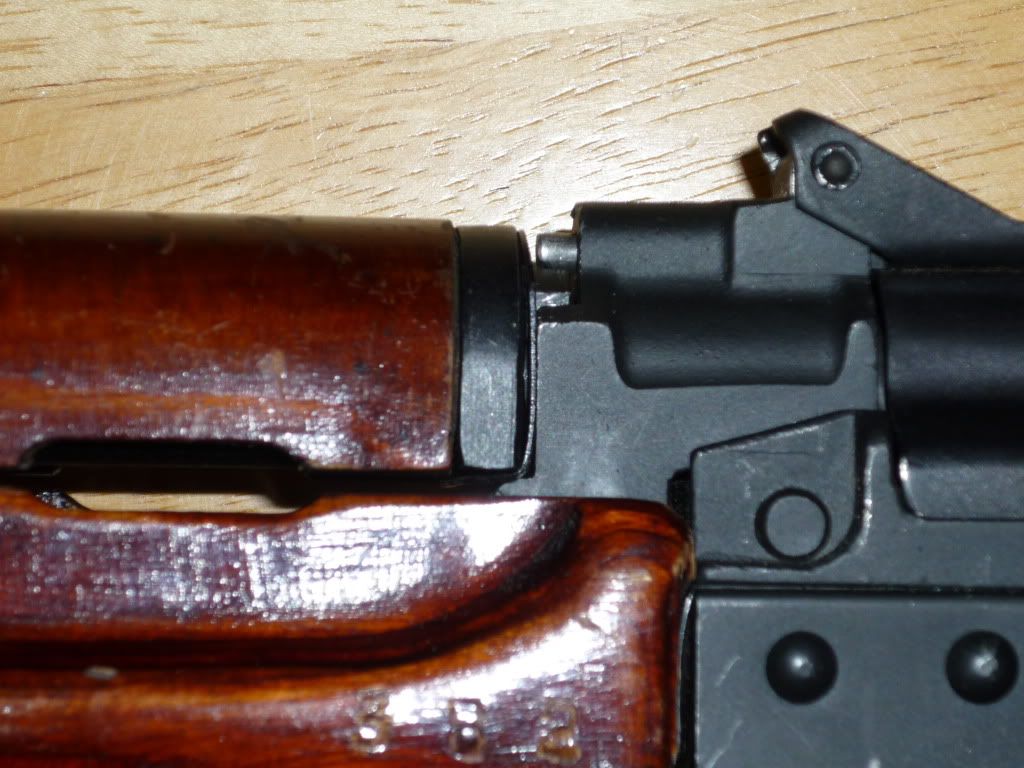

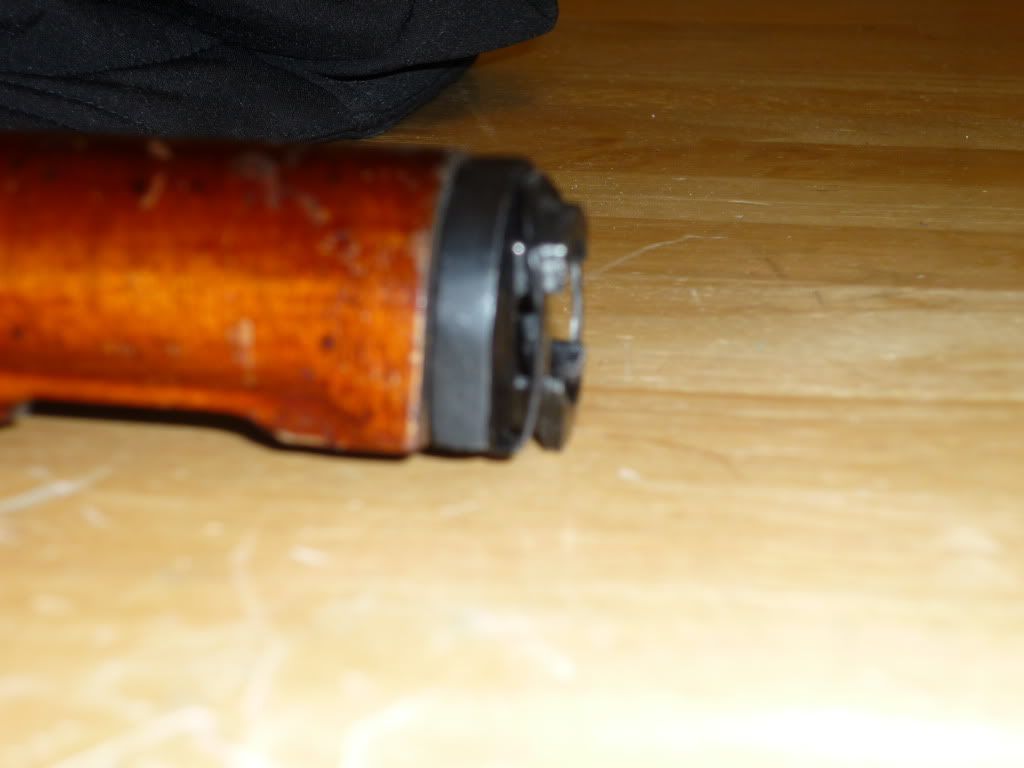

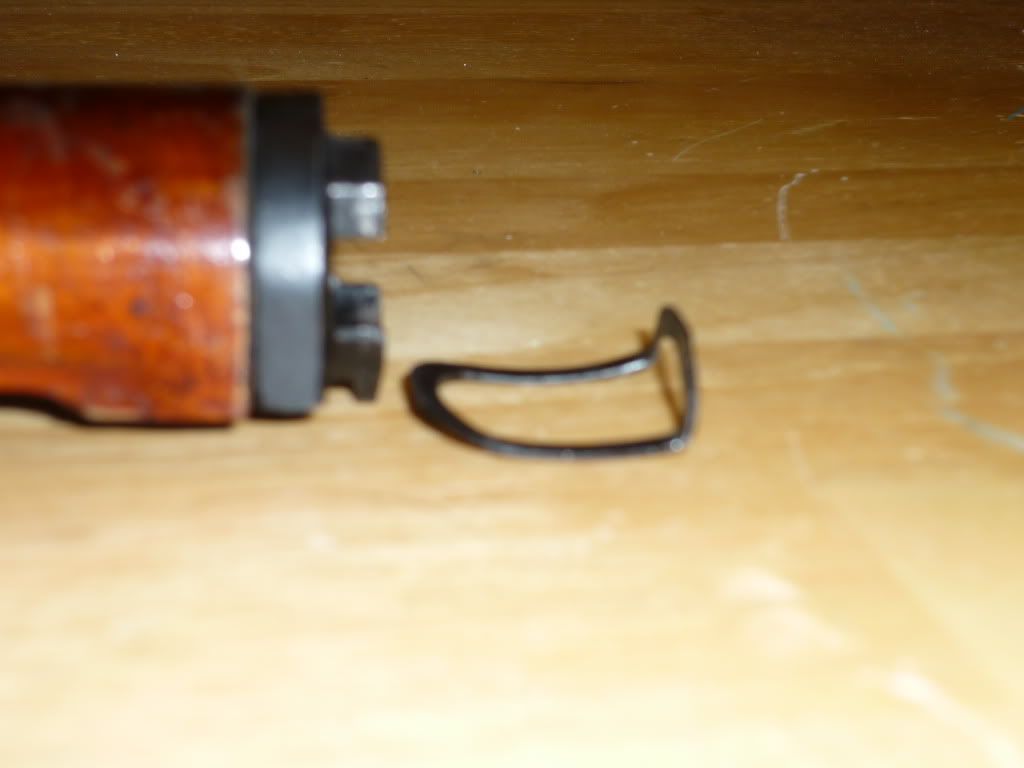

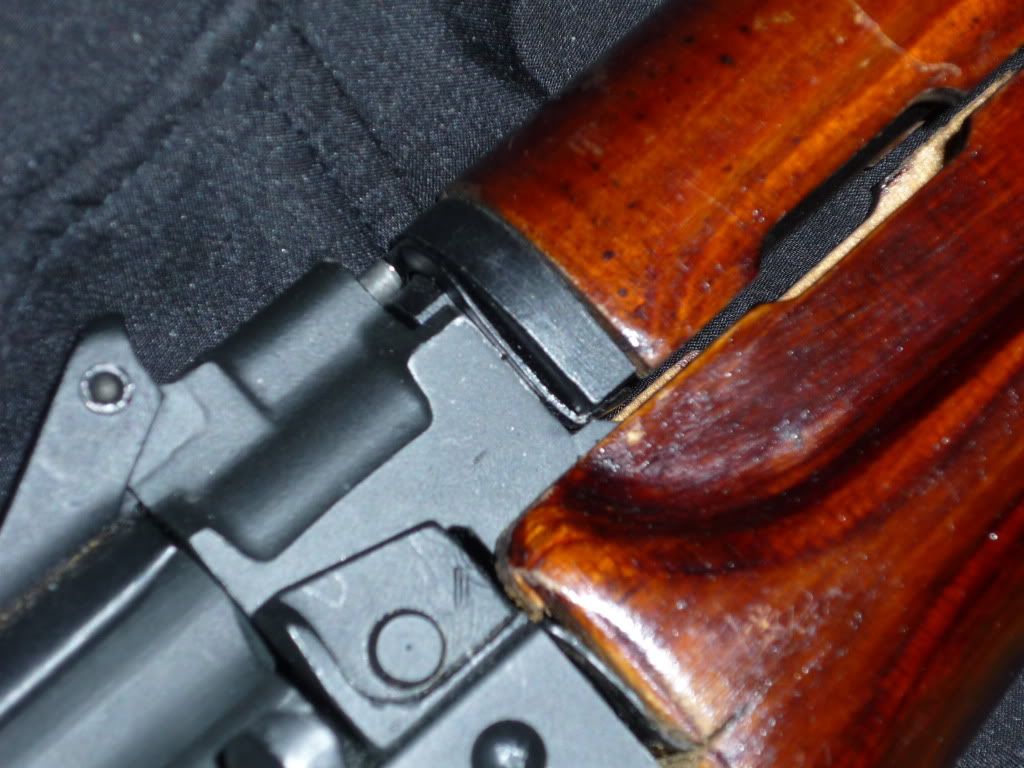

Here is the spring on the gas tube. It fits rock solid. I actually need to use a screw driver to pry the little detent out from over the gas tube. There is no rubbing of the carrier and the rife has worked flawlessly.





AEnemaBay
2111 - USMC
Military
Online
Posts: 2943
Feedback: 100% (39)
Link To This Post
Posted: 7/31/2012 11:59:31 PM
Originally Posted By muzzleloader:
Here is the spring on the gas tube. It fits rock solid. I actually need to use a screw driver to pry the little detent out from over the gas tube. There is no rubbing of the carrier and the rife has worked flawlessly.


http://i263.photobucket.com/albums/ii124/muzzleloader2/P1000421.jpg
http://i263.photobucket.com/albums/ii124/muzzleloader2/P1000422.jpg
http://i263.photobucket.com/albums/ii124/muzzleloader2/P1000423.jpg
http://i263.photobucket.com/albums/ii124/muzzleloader2/P1000424.jpg


Haha, I was actually just thinking to myself, "I wonder if that guy posted those pics he said he was going to do on Monday." Clicked the thread and BAM! Thanks for the pics. Glad I kept all of those springs from my Saiga conversions.
